MBP RC700/800
R-evolutionary VFFS Wrappers – Continuous Box Motion
PRODUCTIVITY
THE-R-SERIES INCREASES EFFICIENCY TO ITS MAXIMUM LEVEL
EASY TO USE
100% INDUSTRIAL PC: MBP R-SERIES + C-SERIES MULTIHEAD WEIGHERS
R SOFTWARE
THE SMART BREAKTHROUGH IN VERTICAL PACKAGING
SPEED
SPEED: UP TO 180 PILLOW BAGS PER MINUTE; UP TO 100 STEELO BAGS PER MINUTE.
SPACE
DRAMATIC REDUCTION OF OPERATING SPACE
PROTECTION
HERMETIC BOX FRAME NO DUST INFILTRATION
INDUSTRY 4.0
CONNECTION TO COMPANY’S SERVERS
PERFECT BAGS
RC700 IS EQUIPPED WITH HIGH PERFORMANCE BOX-MOTION AND A TRIANGLE THAT KEEPS THE FILM PERFECTLY CENTRED.

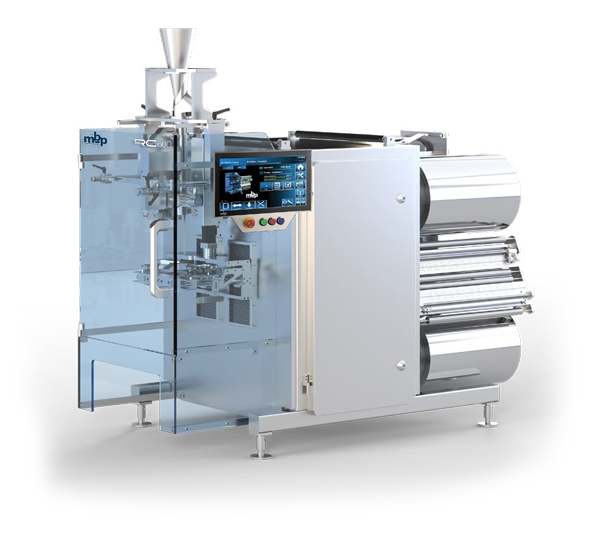

RC700/800 is a continuous motion VFFS machine with Box-Motion top produce pillow bags, square bottom bags and Steelo Bags. RC700/800 is equipped with one or two reel-holder shafts and the sealing unit inside the calender for Pillow-Packs and Steelo-Bags.
Speed: up to 180 Pillow Bags per minute and up to 100 Steelo Bags per minute.
TOP 10 BENEFITS
THE SMART BREAKTHROUGH IN VERTICAL PACKAGING
- Perfect Bags!
RC700/800 exploits the latest ultrasound technology to precisely monitor the exact position of the film on the forming tube.
The software constantly checks the data received from the sensor and automatically corrects the position of the film on the triangle. - Operating organization
Screen saver with end-of-reel calculation and countdown. The RC700/800 machine automatically calculates the reel diameter, the remaining runtime of the machine and the exact time when the machine will automatically stop because the film has finished. - Synoptic panel
In the home page there is a synoptic panel which shows the machine status. This allows the operator to quickly understand the state of every single machine component. - Interactive helps system
Every alarm is linked to the corresponding video and text that illustrate how to solve the problem. Furthermore, dedicated videos illustrate the maintenance operations to be carried out in accordance with the predictive system. - Automatic synchronization with product drop time.
RC700/800 software device is able to anticipate the product onto the weigher automatically, according to the production speed.
- Automation
Acceleration and closing of the jaws are automatically calculated and optimised by the software according to the pack dimensions, packaging speed and sealing time. - Automatic sealing time
As the speed changes, the powerful management software can recalculate the path of any moving part in order to ensure the movement is as smooth as possible and the sealing time constant, eliminating the need for the operator to modify the parameters of the machine - Connection to company’s servers Industry 4.0
Windows architecture, which is installed on all the RC700/800 packaging machines, allows connecting to company’s servers as well as to production management software, and also sending and receiving data regarding the production flow. - Automatic temperature control system
The software constantly controls the temperature of the sealing systems. Therefore, the integrity of the seals is maintained as the production conditions change. - Connection to the coder and labeller
The software manages any date codes and labellers installed on the machine, as if the latter were a continuous one. The label position is managed by the software. No mechanical adjustments are necessary for format change.
The faces behind the R-Series. Meet the MBP Team
MBP has worked in the packaging industry for over 50 years and has assembled the most talented team of system engineers in the world. MBP is driven to solve difficult customer problems, not just building machines.

Esplora gli stili di confezione
pronti per il tuo prodotto
Pillow Bag
.
RC700/800
- W: 80-280mm
- L: 50-350mm
- Up to 180 bags/min
cutting pitch up to 150 mm
Gusseted Bag
.
RC700/800
- W: 80-280mm
- L: 50-350mm
- Up to 180 bags/min
cutting pitch up to 150 mm
Block-Bottom Bag with Central Seal
RC700/800
- W: 100-250mm
- D: 50-100mm
- L: 100-350mm
- Up to 100 packs/min
Steelo-Bag with 4 Seals
RC700/800
-
- W: 100-200mm
- D: 50-90mm
- L: 100-350mm
- Up to 100 packs/min
- .
